Fire fighting system Butterfly valve

Butterfly valve

UL / FM Butterfly Valve – Grooved Ends

UL / FM at 300 psi. Vulcanized Disc design provides bubble tight shut-off every time. Low torque operation – high cycle life. Gear Operated. Includes built-in Supervisory (Tamper) Switch. UL / FM Butterfly Valve - Grooved END to AWWA C606 Standard. Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard

UL / FM Butterfly Valve – Wafer Style





UL / FM at 300 psi. Single piece through shaft. The Weflo UL / FM Butterfly Valve - Wafer STYLE has a Vulcanized Disc design that provides bubble tight shut-off every time. Low torque operation – high cycle life. Gear Operated. Includes built-in Supervisory (Tamper) Switch. Fusion Bonded Epoxy Coated Interior and Exterior to AWWA C550 Standard

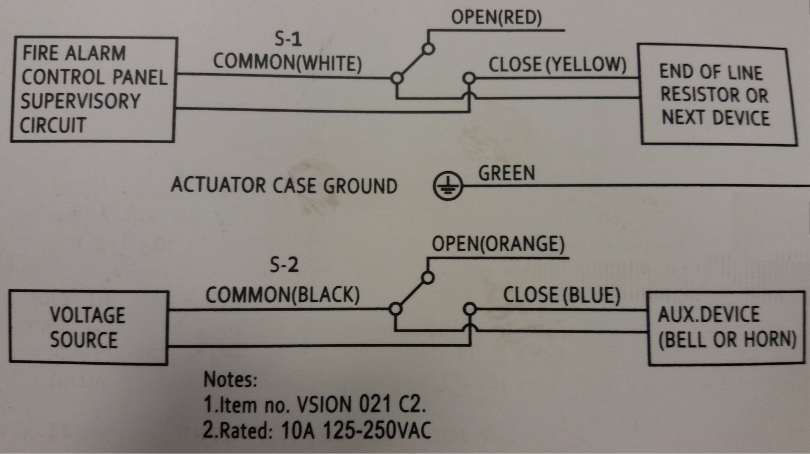

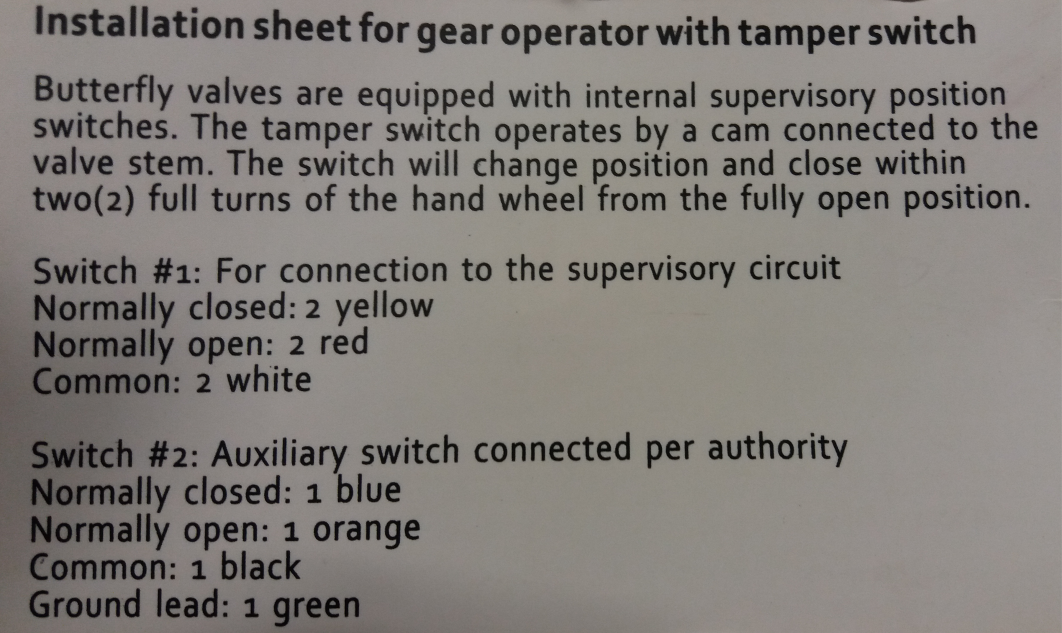

Installation guide
